Ridel Energy’s Heat Recovery Equipment

Ridel Energy’s Heat Recovery Equipment

Refrigeration Units

Chillers

CO2

Refrigeration Heat Recovery

Ridel-Energy is the premier French manufacturer of refrigeration heat recovery equipment.

All Ridel-Energy products are made in France (Normandie region) since 1974.

Our equipment produces hot water by recovering the wasted heat from your refrigeration system. You can then use this hot water for other purposes such as processing, Domestic Hot Water (DHW) and heating.

Heat recovery from refrigeration units Ridel-Energy

Refrigerant heat exchangers are immerged into the storage water :

  • Optimized heat exchange,
  • Simultaneous heat recovery on multiple refrigeration groups/units,
  • Simplified installation: saving of one circulation pump per refrigeration circuit.

A double heat exchange in technical water :

  • This prevents the development of bacteria such as legionella,
  • No heat shock required, which further decrease the energy consumption,
  • Storage of calories in technical water prevents rust and limescale : prolonged life span and minimal maintenance required.

Our Range

Features

Range : standard or custom-made

All refrigerant : HFC – HFO – Nat Ref

Cooling power : from 1 kW to 4,5 MW

Volume : from 200 L to 90 M3

Insulation : indoor or outdoor

Recuperateur de chaleur pour commerces de proximite RidelRef RidelEnergy

Heat recovery from refrigeration units Ridel-Energy Heat recovery from condensing units

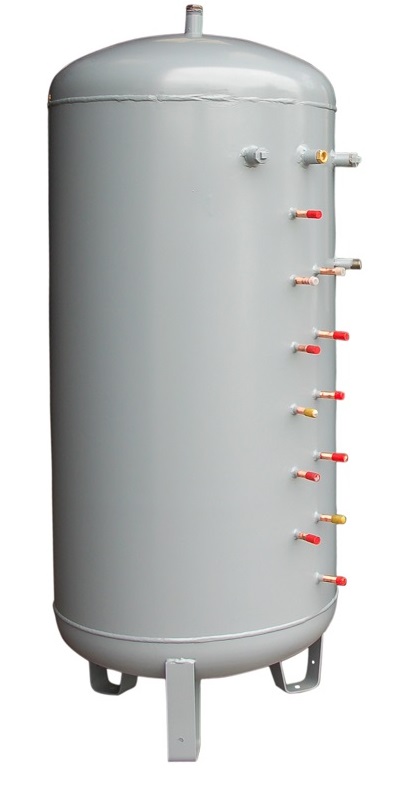

Ridel/Ref has been developed specifically for small and medium scale refrigeration systems.

This product is perfectly adapted for convenience stores, butchers, bakeries or restaurants.

Ready to plug via direct expansion on the discharge line of the compressors, Ridel/Ref are extremly efficient :

  • easy to install : PHE or circulation pumps are not required,
  • no maintenance, no need to plan for spare parts.
Fiche technique

Recuperateur de chaleur sur installation frigorifique RidelRec RidelEnergy

Heat recovery from refrigeration units Ridel/Rec Ridel Energy

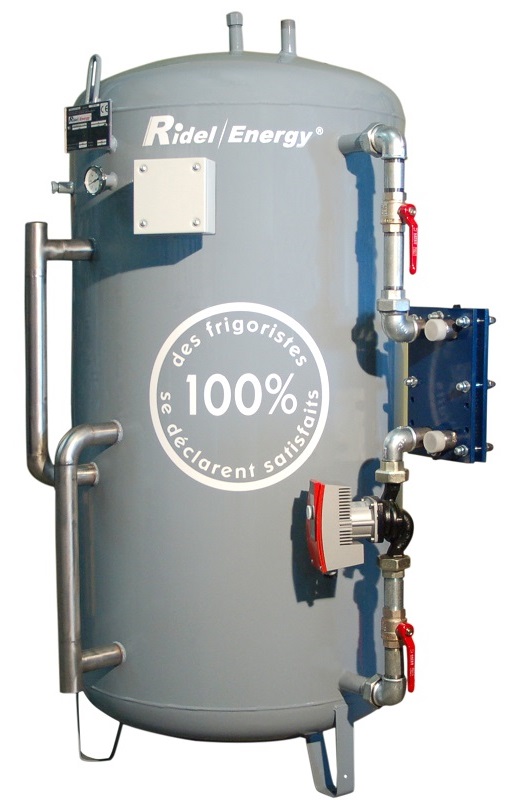

Ridel-Energy’s core business, Ridel/Rec is available in a wide range of volumes from 500L to 20,000L. These units are customized for the refrigeration equipment already installed on your premises

Designed for large retail stores and light industry, the Ridel/Rec allows you to produce free hot water for your domestic hot water and/or heating needs.

Fiche technique
Solution complete de production d'eau chaude avec Recuperateur RidelPackHeat recovery from refrigeration units Ridel/Pack Ridel-Energy

The Ridel-Pack is your complete hot water production tool.

While the recovery unit provides sufficient heat for most needs, the Ridel/Pack provides a second tank for supplementary heating when necessary.

This complete solution provides you the tool to fight against the sanitary risks associated with bacteria development.

Fiche technique

Recuperateur de chaleur sur centrale frigorifique RidelCub Ridel EnergyHeat recovery from refrigeration units Ridel/Cub Ridel-Energy

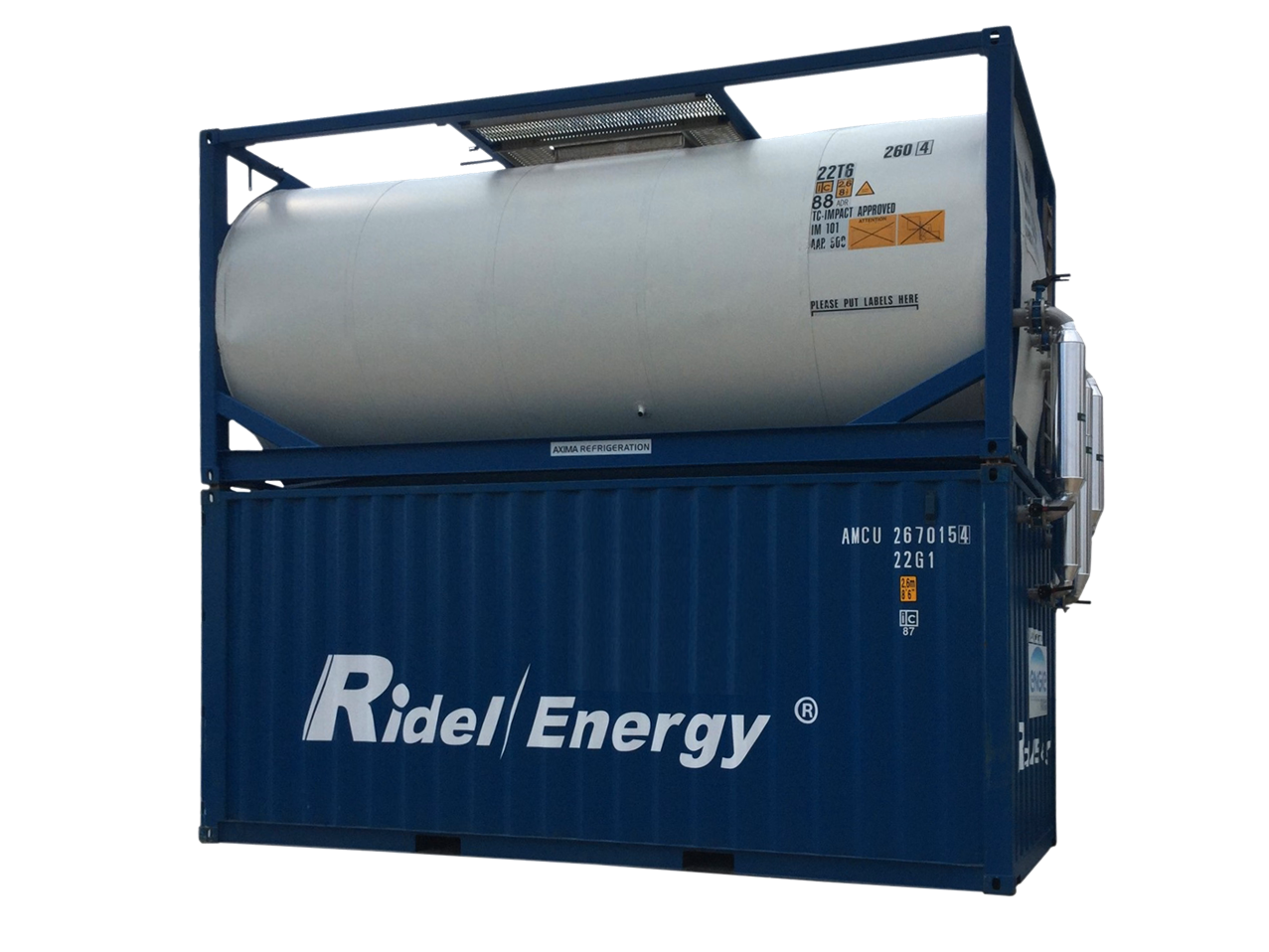

Designed for a full range of industrial uses, the Ridel/Cub is an optimized heat recovery system intended for installation as a free standing outdoor unit.

Developed for the refrigeration systems with high cooling power, Ridel/Cub is efficient and easy to install.

Fiche technique
Contact us for a quote

Heat Recovery on chillers

Heat recovery from refrigeration units - Chillers

Heat recovery on chillers, air compressors, solar pannels etc….

Storage tank using a heat transfer fluid (MEG/MPG/PCM),

Immerged secondery exchanger with small volume and a large heat exchange surface – from 5 kW to 1 200 kW,

Preheating or instant preparation of domestic hot water,

Zero risk of development of bacteria (such as legionella) : no heat shock required,

Energy add-on available on demand : electric, gas, steam, renewable energies, heat recovery.

Contact us for a quote
